MSI MAG PANO 130R PZ White Mid‑Tower Gaming PC Case, Back‑Connect ATX Support, Panoramic Glass Design, 4× ARGB Reverse Blade Fans, Up to 10 Fan Support, 400 mm GPU Clearance – White
8 sold in last 24 hours
- Support Back‐Connect ATX Motherboard – Compatible with ATX PROJECT ZERO motherboards, allowing easy installation and streamlined cable management by routing cables through the rear
- Upgrade Airflow Layout – Supports up to 10 fans and 360 mm radiators on the top and side, while vented lower chambers further enhance heat dissipation for optimal performance
- Rotatable PCIe Bracket – Single bracket with two orientations, allowing a quick 90° rotation to switch between horizontal and vertical GPU installations.
- Dust Filter – Magnetic top and removable bottom dust filters improve airflow while keeping the system clean and protecting internal components from dust buildup.
- Pre‐built with Reverse Blades Fan – Side‐mounted reverse blade ARGB fans provide unobstructed lighting, showcasing the full visual effect without interference from the fan frame.
Estimated shipping
Select a product to estimate shipping.MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.
MAG PANO 130R PZ
SMART IN SPACING
The PANO 130R MLG EDITION is a compact mid-tower case engineered for optimal airflow and compatibility. It supports up to 10 fans, with four pre-installed, and features enhanced venting for superior heat dissipation. Designed for flexibility, it accommodates GPUs up to 400mm in length and an ATX or Micro-ATX back-connect motherboard.
Mid-tower case with tempered glass side panel
ATX, Micro-ATX and Mini-ITX motherboard support
Back-connect ATX and Micro-ATX motherboard support
Pre-installed with three 120 mm reverse-blade ARGB fans on the side and one 120 mm regular ARGB fan at the rear.
Removable dust filters on the top and bottom of the case.
Multi-function storage bracket supports 2 x 2.5", 2 x 3.5" and 2 x 2.5"/3.5" combo bays
1 x USB 20Gbps (Type-C) and 2 x USB 5Gbps (Type-A)
Vents around the lower and back chambers enhance heat dissipation.
Daisy-chain connection
With daisy-chain connection, all four fans can be linked in sequence to share power and lighting signals. This reduces cable clutter, simplifies installation, and ensures a cleaner, more organized build.

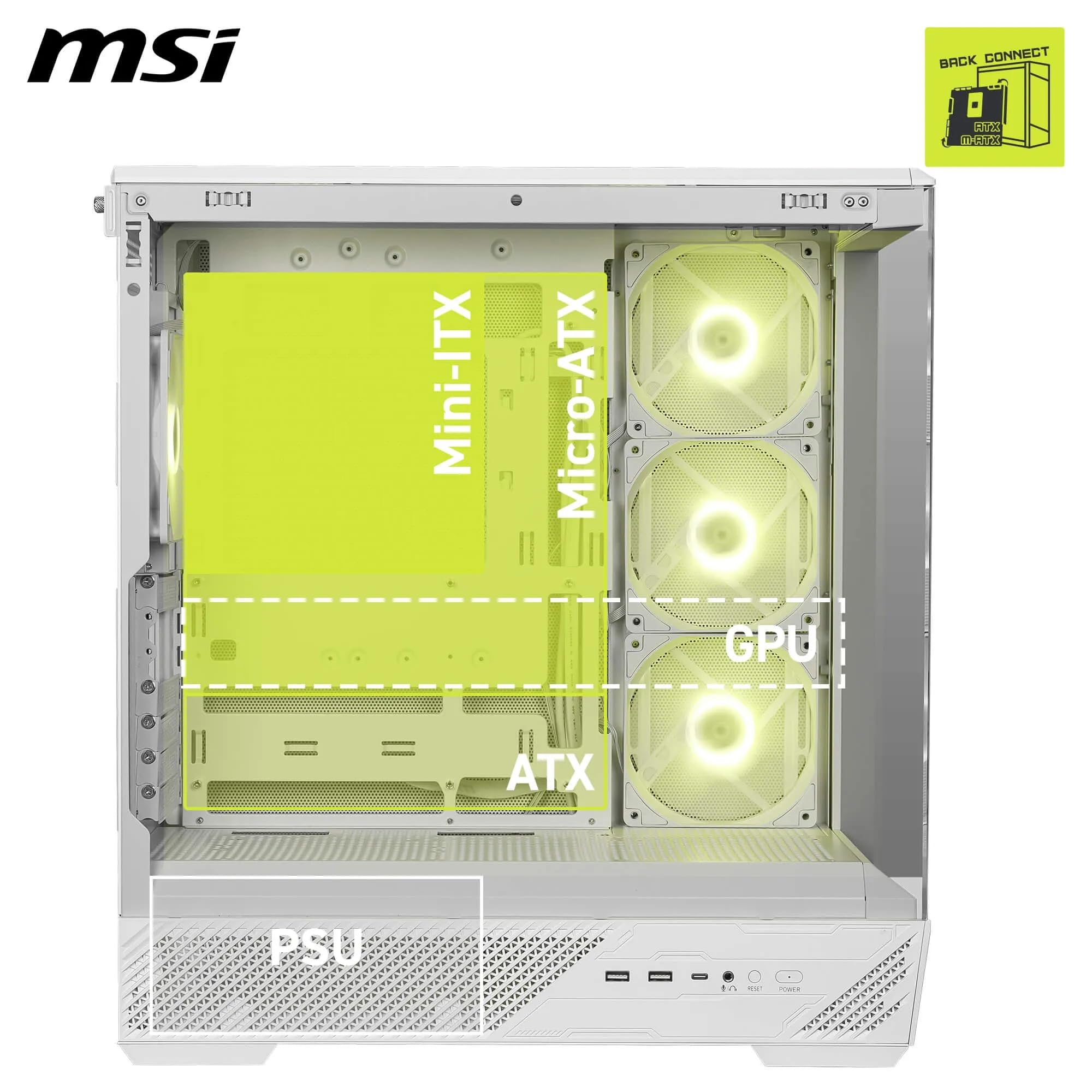

Extensive Compatibility
The PANO 130R MLG EDITION is a compact mid-tower case that offers ample space:
Motherboard support:
Regular: ATX / Micro-ATX / Mini-ITX
Back-connect: ATX / Micro-ATX
Component clearances:
CPU Cooler height: 165 mm
GPU length: 400 mm
PSU length: Up to 180 mm
Extensive Cooling Support
Cooling options include:
Top: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Side: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm (Above the power shroud)
*Pre-installed Fans:
Side: 3 x 120 mm ARGB Fan (Reverse-blade)
Rear: 1 x 120 mm ARGB Fan
Airflow Optimization
Increased number of vents on the sides and front of the case to enhance overall heat dissipation. Supports up to 10 fan installations and comes pre-installed with three reverse-blade fans on the side and one regular fan at the rear.
Panoramic View
The case boasts a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed components.
Drive Mount Support
The SSD bracket features a tool-less design, and the HDD cage is adjustable, allowing users to build systems with greater flexibility.
Storage options:
2 x 2.5" SSD
2 x 3.5” HDD
2 x 2.5“ SSD / 3.5 " HDD Combo Tray

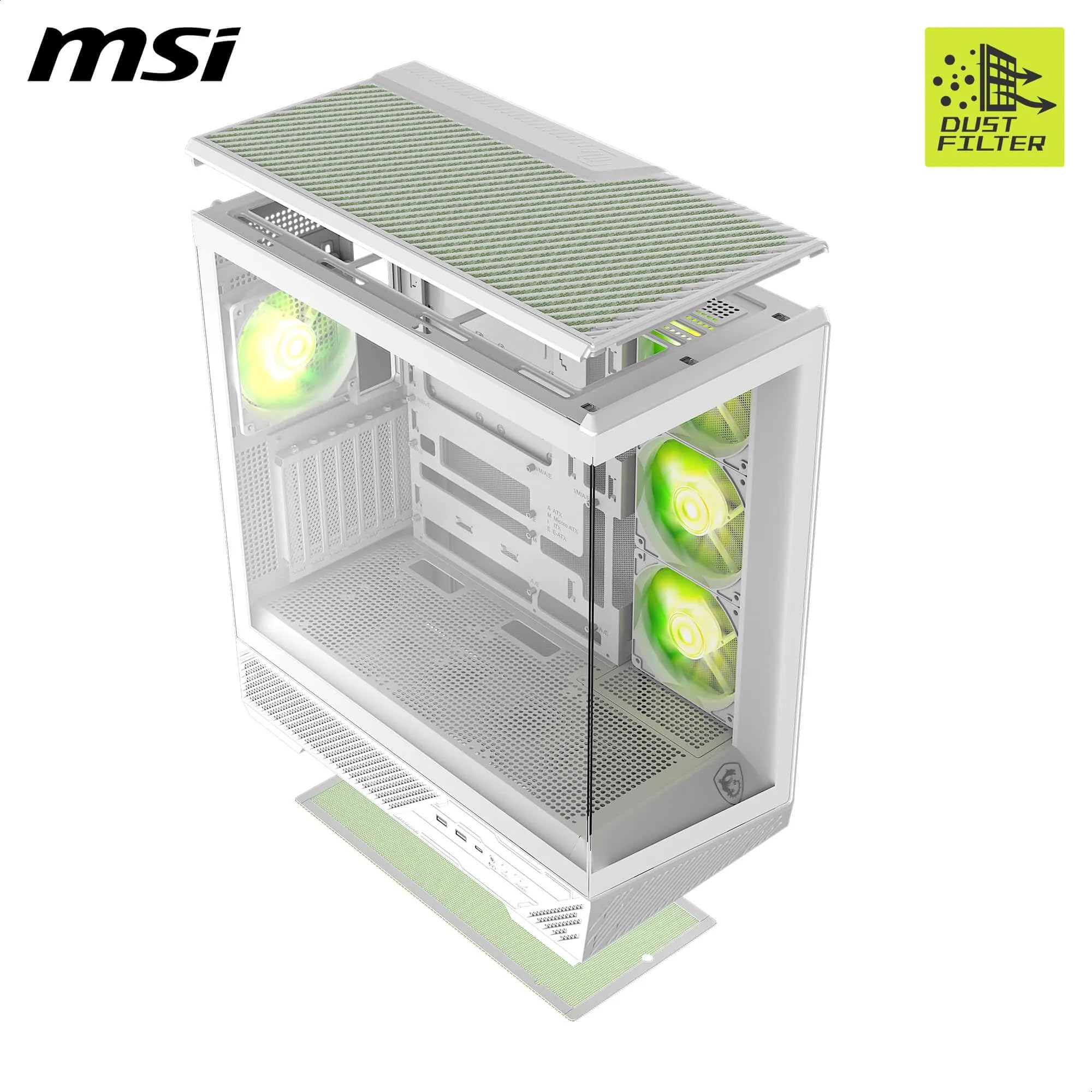

Dust Protection
The case includes two removable filters on the top and bottom, helping protect internal components from dust buildup.

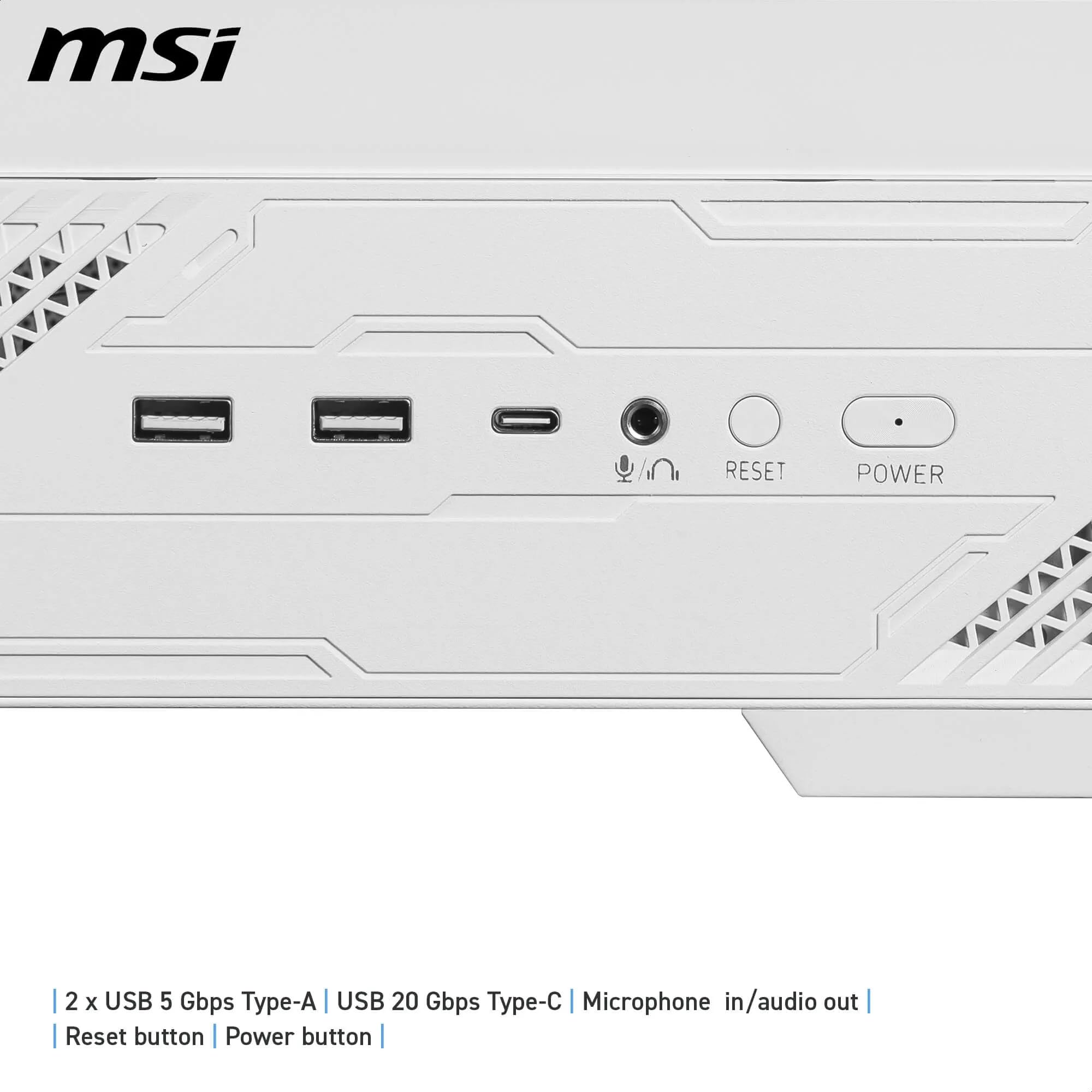

Panel I/O
The side I/O panel features a USB 20Gbps Type-C port for high-speed data bridging to compatible motherboards.
2 x USB 5Gbps (Type-A)
1 x USB 20Gbps (Type-C)
Mic In / Audio Out
Reset Button
Power Button
Product details
| Main Specification | |
|---|---|
| Perangkat Kompatibel | ATX or Micro-ATX or Mini-ITX motherboards or ATX power supply units or up to 400 mm graphics cards or standard ATX cooling systems |
| Manufaktur | MSI, Micro-Star INT 'L CO, LTD. No.69, Lide St., Zhonghe Dist., New Taipei City 235, Taiwan http: / / www.msi.com. |
| Cacah Unit | Cacah 1.0 |
| Warna Cahaya | Putih |
| Metode Pendingin | Udara |
| Brand | MSI |
| Jumlah Objek | 1 |
| Uses Yang Disarankan Untuk Produk | Permainan |
| Faktor Formulir Hard Disk | 3,5 Inches |
| Nama Model | MAG PANO 130R PZ White |
| Warna | putih |
| Nomor Identifikasi Perdagangan Global | 04711377373302 |
| Butir Berat | 8.37 Kilograms |
| Product information | |
| Jumlah Paket | 1 |
| Total Port USB | 3 |
| Technical Details | |
| Nomor Bagian Manufaktur | 306-7G32W21-HH9 |
| Negara Asal | Cina |
| Item details | |
| Nomor Model | 306-7G32W21-HH9 |
| Nama Tipe Butir | Computer Case |
| Measurements | |

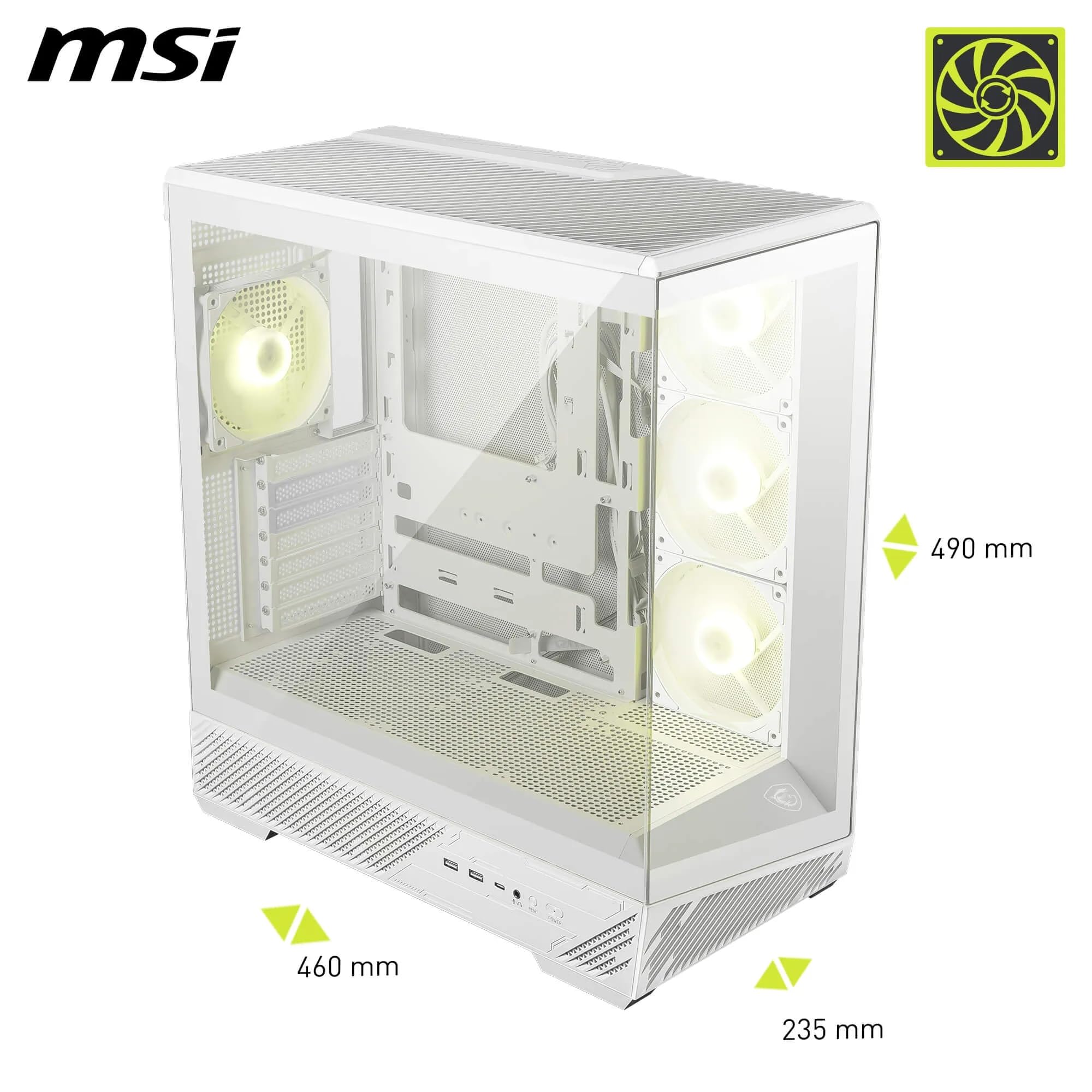

| Dimensi Butir D x W x H | 46D x 23.2W x 49H Centimeters |
| Others | |
| Informasi Kontak Packer | Micro- Star INT 'L CO. or LTD. No.69 or Lide St or Zhonghe Dist. or New Taipei City 235 or Taiwan http: / / www.msi.com.. |
| Informasi Kontak Pengimpor | Perusahaan Teknik Acro or Lembaran C-87 DDA or Area Industri Okhla or Phase-1 or New Delhi 1120 |
| Fitur Khusus Lainnya dari Produk | Dust Filter or Built-In Fan or Tempered Glass Window |
| Kompatibilitas papan induk | ATX or Micro-ATX or Mini-ITX |
| Papan induk yang didukung | ATX or Micro-ATX or Mini-ITX |
| Tipe Produk | Computer Case |
| Enclosure Material | Alloy Steel |
| Informasi Kontak Manufaktur | Micro-Star INT 'L CO., LTD. No.69, Lide St, Zhonghe Dist., New Taipei City 235, Taiwan http: / / www.msi.com. |
| Lokasi Antena | Permainan |
| Jumlah Fans | 4 |
| Total USB 3.0 Port | 1 |
| Total Port 30 USB | 1 |
| Jenis Kasus | Midi Tower |
| Tipe Penggerak Daya | Kait Bawah |
| Kuantitas Bays Internal | 3 |
