2Pcs 22MM Momentary Push Button Switch 10Amp Yellow 1NO 1NC SPDT Metal Head Waterproof IP65
10 sold in last 24 hours
- KNDELE Brand New 22mm Momentary Push Button Switch,Push & Hold, ON; Release, OFF. Waterproof IP65.
- Push Button without light;Ith: 10A; Ui : 600V; Material : Plastic and Metal; Terminal Quantity : 4; Contact Type :1NO + 1NC, SPDT; Action Type : Momentary.
- Button Color : Yellow. Mount Hole Diameter : 22mm,(7/8"); Fit Panel Thickness: Max 0.5cm / 0.2".
- Mounting Hole: 7/8''/22mm. Button Head: 28.8mm / 1.13" ;Net Weight : 81g/ 0.18pound.
- Package Content : 2 Pcs Yellow Push Button Switch
Tags |
Estimated shipping
Select a product to estimate shipping.Package include :
2* Yellow Push Button Switch
Specifications:
Head diameter: 29mm
Mounting hole size: 7/8" (22mm)

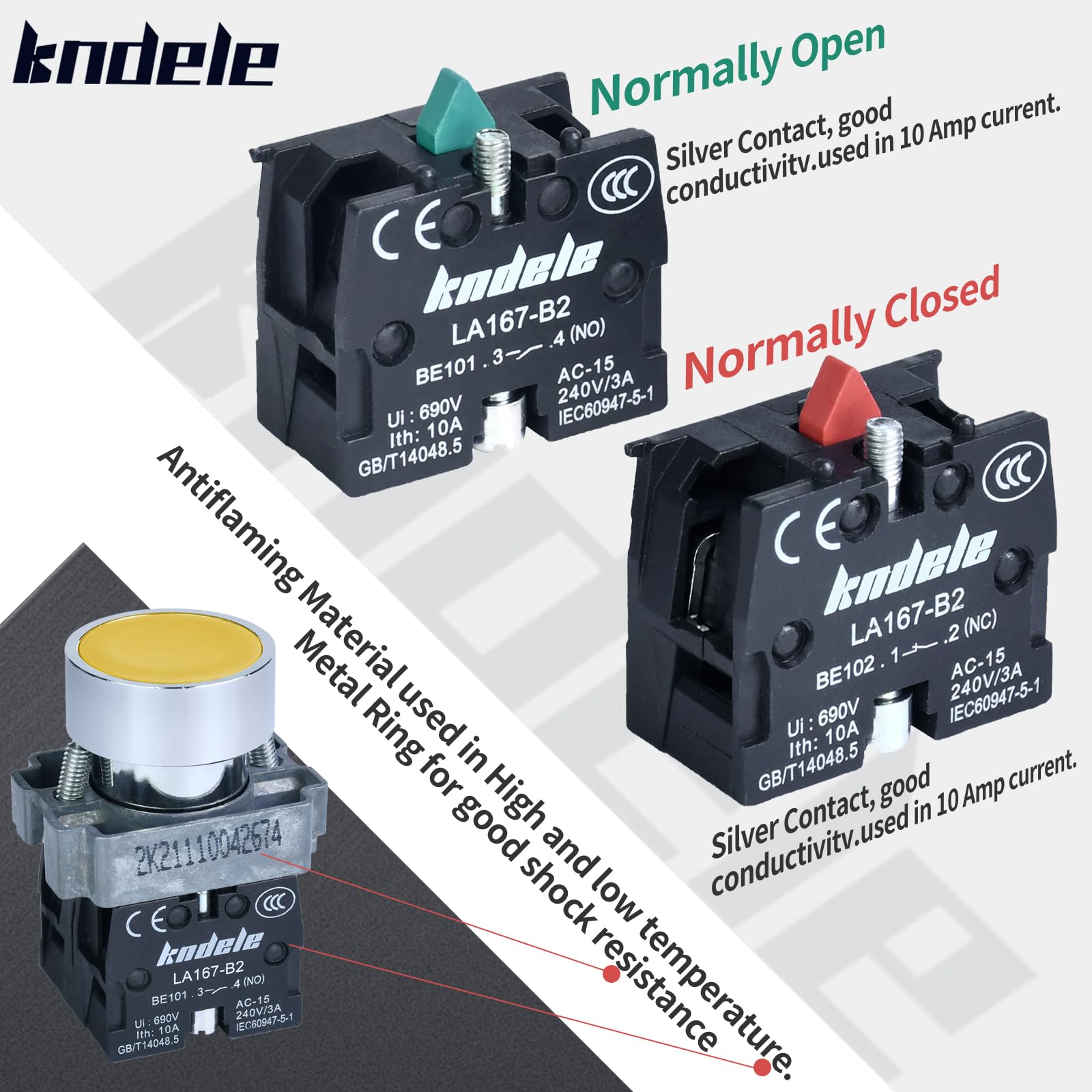

Switch combination: 1NO1NC SPDT
Switch rating: 10A/600VAC
| Main Specification | |
|---|---|
| Tipe Kontak | Spdt or 1 Normally Closed + 1 Normally Open |
| Manufaktur | KNDELE |
| Cacah Unit | Cacah 2.0 |
| Metode Kendali | Tombol Push |
| Spesifikasi Met | CE |
| Tipe Pengontrol | Tombol Push |
| Material Kontak | Perak |
| Rating Kini | 10 Amps |
| Voltage Operasi | 12 Volts |
| Terminal | Sekrup |
| Jenis Circuit | 2-way |
| Tipe Aktuator | push button switch |
| Brand | KNDELE |
| Jenis Kendali | Basic On-Off Control |
| Jumlah Objek | 2 |
| Mode Operasi | ON- OFF |
| Komponen Sertakan | 2 Pcs Yellow Push Button Switch |
| Perangkat Kompatibel | Any device requiring a simple on-off switch |
| Peringkat Suhu Atas | 55 Derajat Celsius |
| Warna | Kuning |
| Tipe Konektor | Terminal Screw |
| Jenis Mounting | Kait Panel |
| Product information | |
| Tipe Switch | Tombol Push |
| Technical Details | |
| Nomor Bagian | KN-LA167-21Y |

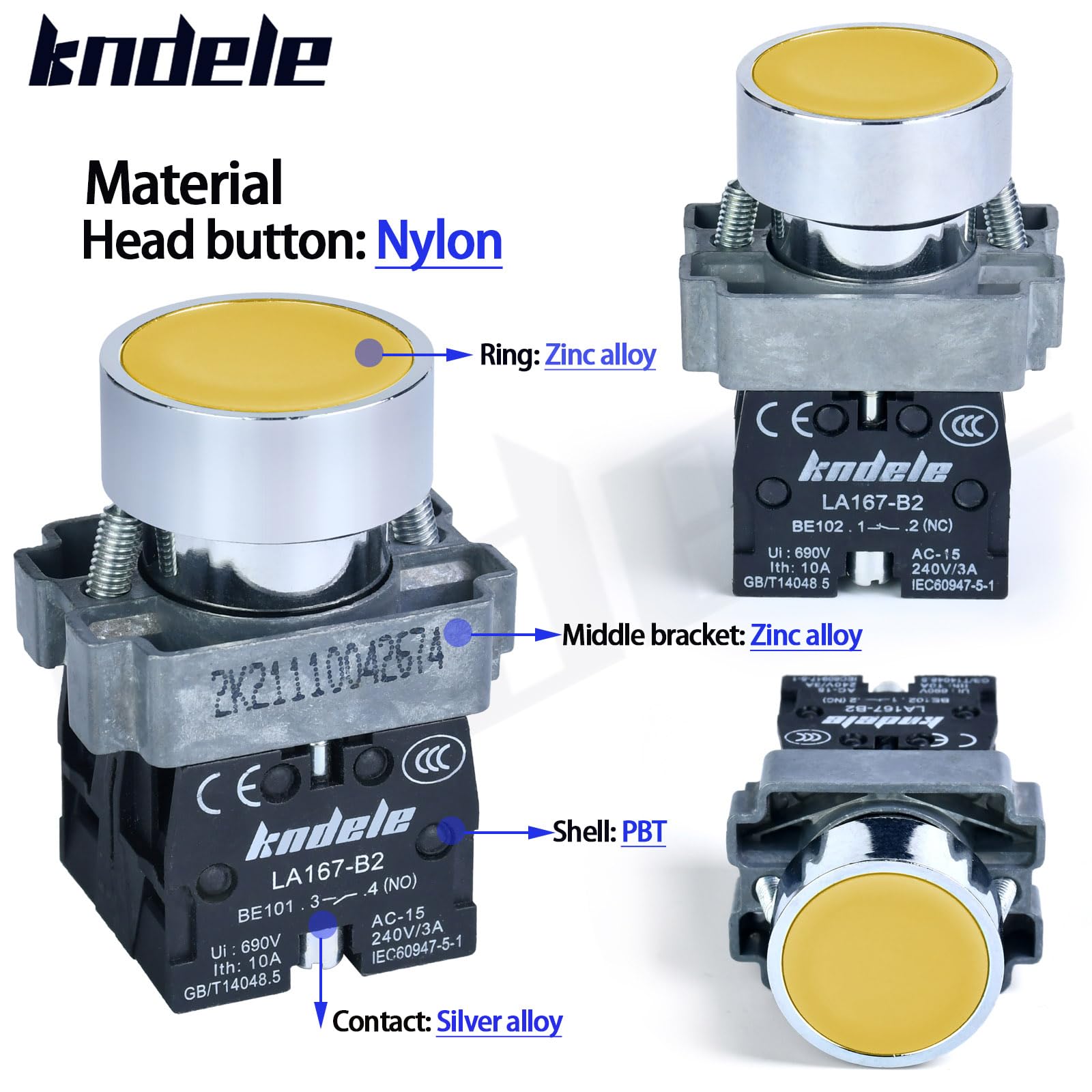

| Jenis Material | Plastik |
| Peringkat Perlindungan Internasional | IP65 |
| Jumlah Posisi | 1 |
| Item details | |
| Nomor Model | KN-LA167-21Y |
| Measurements | |
| Dimensi Butir | 5.5 x 2.9 x 5.5 Centimeters |
| Others | |
| Tipe Produk | Push Button Switches |
